SATURN TD31 10-40KL

รายละเอียดเพิ่มเติม

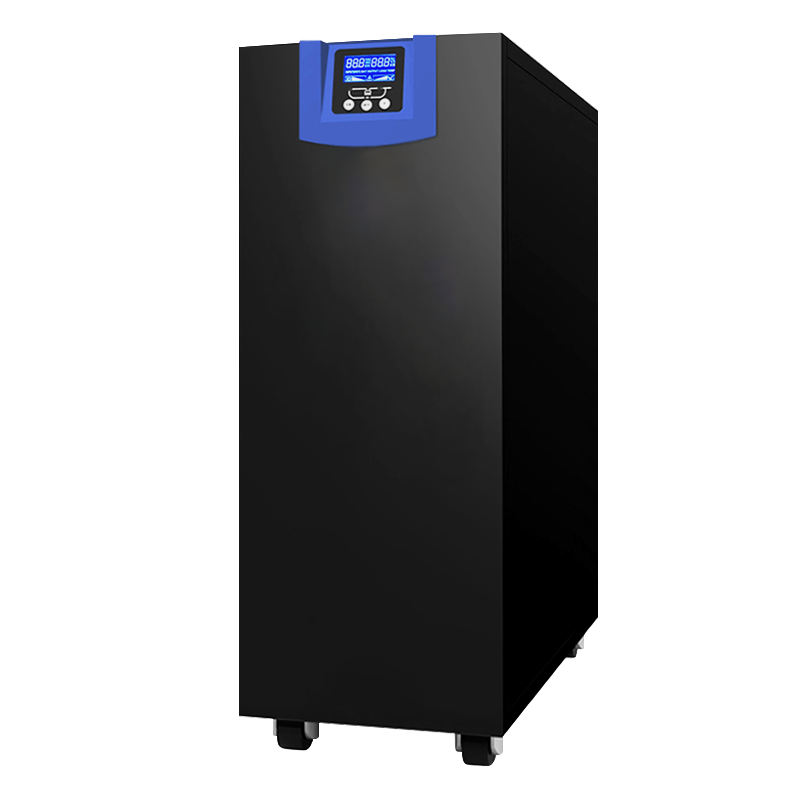

SATURN TD31 10-40KL

True On-Line Double Conversion UPS

Low Frequency with Isolation Transformer



Features

  • True Online Double Conversion UPS
  • Microprocessor Control with IGBT Technology
  • Built in Output Isolation Transformer
  • Sine Wave by Pulse with Modulation(PWM)
  • Pure Sine Wave output with less than 3%THDV
  • Output Voltage 1Phase 220Vac + 1%
  • Output Power Factor PF0.9
  • Advance Battery Management (ABM)
  • Battery Status & Remaining Time Function
  • EPO : Emergency Power Off (20-40KVA)(Option)
  • Under / Over Voltage, Over Load, Short Circuit and Over Temperature Protection Long Back up with External Battery Unit
  • Auto Bypass / Manual Bypass
  • Parallel Redundant N+X 20-40KVA (Option) Intelligent RS232/RS485 and communication port
  • Soft Restart AC/DC by Cold Start Function
  • EMI / RFI and Power Line Noise Protection
  • LCD and LED Display with UPS Status
  • UPSilon2000 UPS Monitoring Software in OS Windows 95/98/NT/2000/ME/XP, Novell and Unix
  • Remote Monitoring and SNMP Card (option)
  • TIS 1291 Part 1-2553, Part 2-2553, Part 3-2555:C1 CE : IEC62040-1,-2,-3, IEC61000
  • ISO9001/ IS014001: 2015 Certified Manufacturer



Applications

  • Medical Equipment
  • Hospital Equipment
  • Banking & Financial
  • Server, Data Network
  • Telecommunication
  • Transportation
  • Industrial Grade
  • Heavy Duty Grade
  • Assembly Line
